2000L beer fermenting tank stainless steel 304turnkey plant for bar/pubs

HERMANN BEER EQUIPMENT
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

2000L beer fermenting tank stainless steel 304turnkey plant for bar/pubs

Brand Name : HERMANN

Model Number : HEM-Fermenter2000L

Certification : CE,ISO9001,TUV

Place of Origin : China

MOQ : ≥1Set/Sets

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1-30 Set/Sets per Month

Delivery Time : 15 work days

Packaging Details : Iron frame

Name : Stainless Steel Conical Tank

Thickness of Tanks : Inner 3mm/Outer 2mm

Material : Stainless Steel 304/Stainless Steel 316/Copper

Insulation material : Polyurethane insulation

Control System : PLC

Surface : Brushed Stainless Steel

After-sales Service Provided : Engineers available to service machinery overseas

Contact Now

2000L beer fermenting tank stainless steel 304turnkey plant for bar/pubs


Conical Fermentation Tank Introduction


Fermenter are also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel), primary fermentor or unitanks as they are used both for fermenting and lagering. Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.


Our stainless steel fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as over-pressure and under pressure valve(PVRV), CIP arm, sanitary sample valve, manway, etc.. The design of fermenters is based on our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting & lagering capacity and configuration, sufficient time fermenting and lagering to produce quality beers must be taken into consideration.

Technical Specification

Working volume:2000L/20BBL/20HL
Design temperature:Min:0℃ Max:100℃
Design pressure:2Bar
Working pressure:1Bar
Inner tank thickness:3mm
Outer tank thickness:2mm
Surface process of the tank:Brushed surface
Head type:Dished head
Bottom type:Conical bottom,60°degree.
Insulation material and thickness:PU insulation,100mm
Dimple jacket design pressure:2Bar
Dimple jacket working pressure:1Bar
Cooling jackets around the cylinder and bottom coneCooling area: 2.2
Valves and fittingsBreath valve,Sample valve,Pressure gauge and Mechanical Pressure regulating valve

Details of Fermenter


Optional:


CO2 blow-off arm
Level tube
Dry hopping port

Carbonation device


Advantages of Fermenter


1. The fermentation system designed by Hermann can satisfycustomers' unique and diverse brewing requirements. Ourhigh standard fermentation tank volume can be 50L-50000L.


2. We all adopt certified stainless steel. All tanks and sandwiches haveundergone more than three pressure tests. All tank diameters and heightsare based on the customer's plant requirements. The design pressure ofthe tank is 0.4Mpa, and the test pressure is 0.3Mpa.


Production Process



Company Profile


Shandong Hermann Biological Engineering Co., Ltd. is an equipment manufacturer focusing on the global biological fermentation industry, with more than 16 years’ experience in the field of biological engineering industry, beer (beverage) brewing equipment and filling machine industry, always specializing in the manufacture of high-end equipment. Company is major engaged in beer brewing equipment,providing high-end integrated services from product design, production, processing, installation and technical process training for large,medium,micro breweries,hotel restaurants, bar brewing enthusiasts.Company's products include mash equipment, fermentation equipment, yeast enlargement equipment, filtration equipment, CIP cleaning equipment, filling equipment, control system, bio-pharmaceutical machinery, alcohol, monosodium equipment and other starch fermentation equipment, a variety of wine,fruit wine,beverage, juice manufacturing equipment as well as scientific research, teaching micro-concentration test equipment and so on.


China 2000L beer fermenting tank stainless steel 304turnkey plant for bar/pubs factory

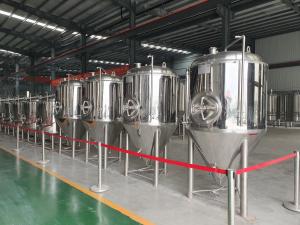

2000L beer fermenting tank stainless steel 304turnkey plant for bar/pubs Images
